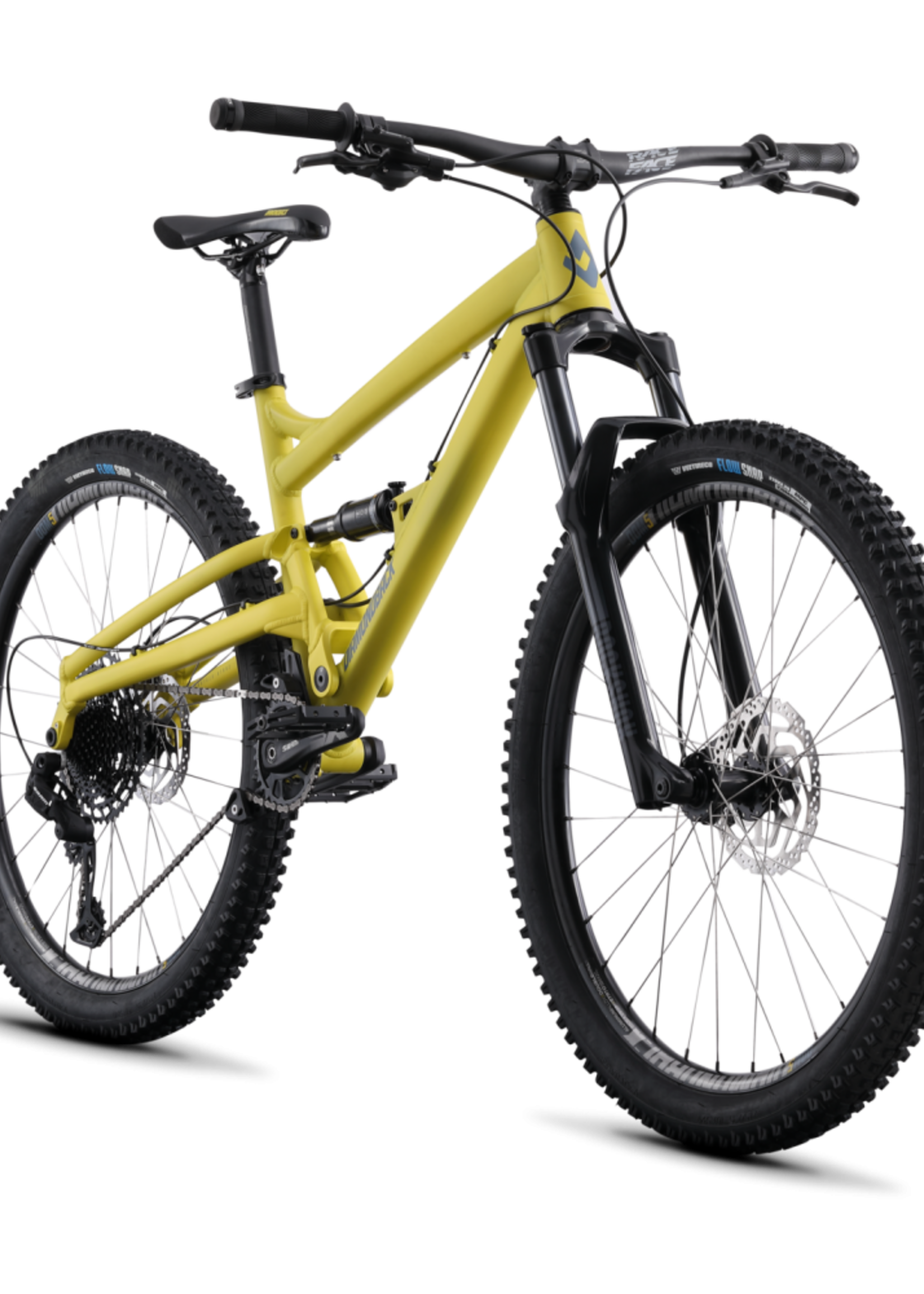

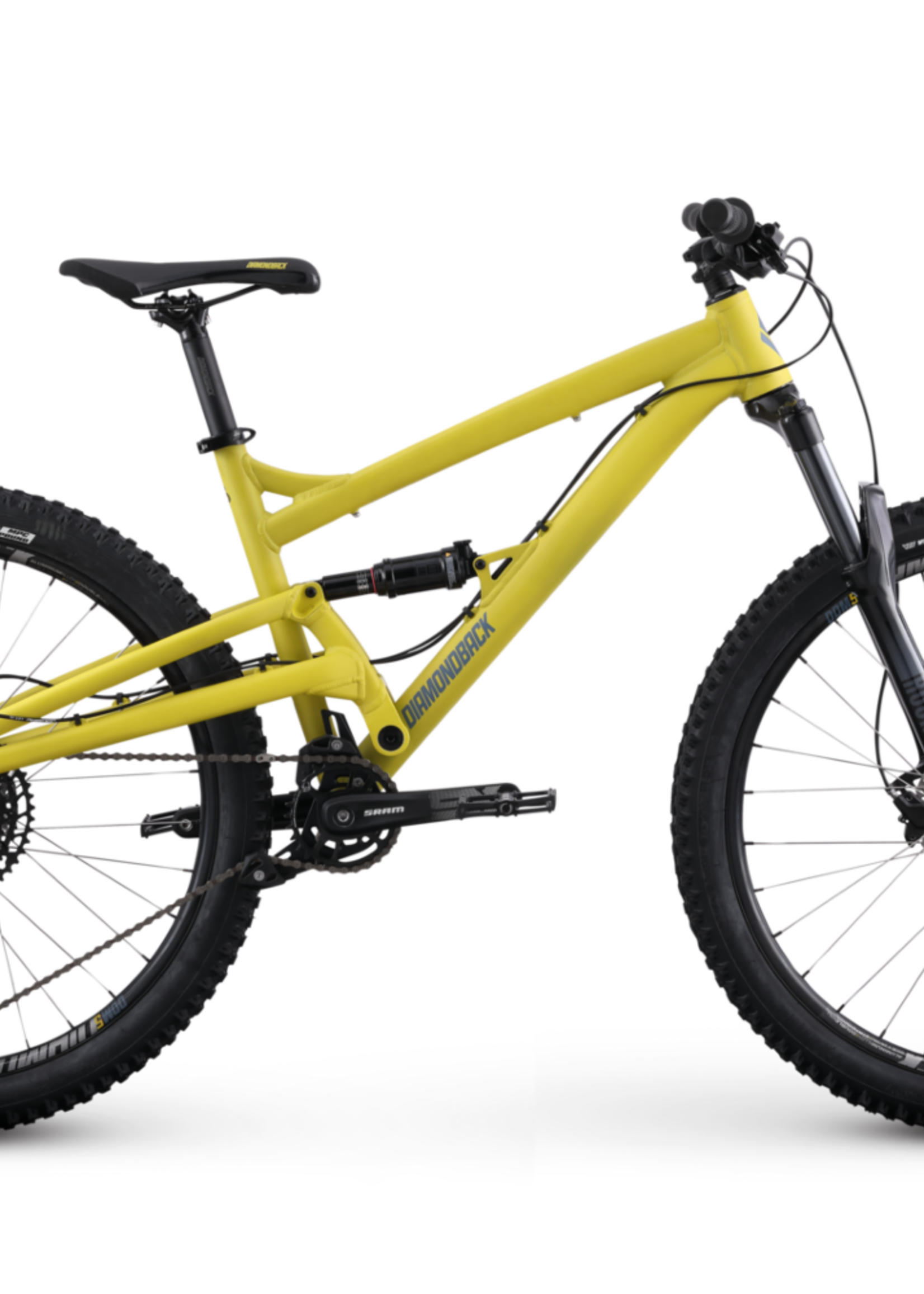

With the Atroz 3, we took the proven and refined single-pivot full-suspension design and upped the ante in a big way. It’s a full RockShox affair when it comes to suspension, including the five-inch travel Recon RL air-sprung fork with 32mm stanchions and a quick release thru-axle. Likewise, we outfitted this model with SRAM’s SX Eagle 12-speed drivetrain — all the simplicity and durability of a single-ring drivetrain, with the low gearing you once needed a front derailleur to obtain. Shimano hydraulic disc brakes provide plenty of stopping power, and we finished the bike off with a Race Face Chester bar and stem combo.
- FRAMEAtroz 6061 T-6 Aluminum 27.5 Trail w/ 4" travel, Optimized Single Pivot, Tapered Steerer, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, Seat Tube Routed for Internal Dropper Post, Aggressive Geometry, 142x12mm Rear Axle w/ Replaceable Hanger
- REAR SHOCKRockShox Monarch R, Air Shock w/ Rebound Adjust, 184x44mm

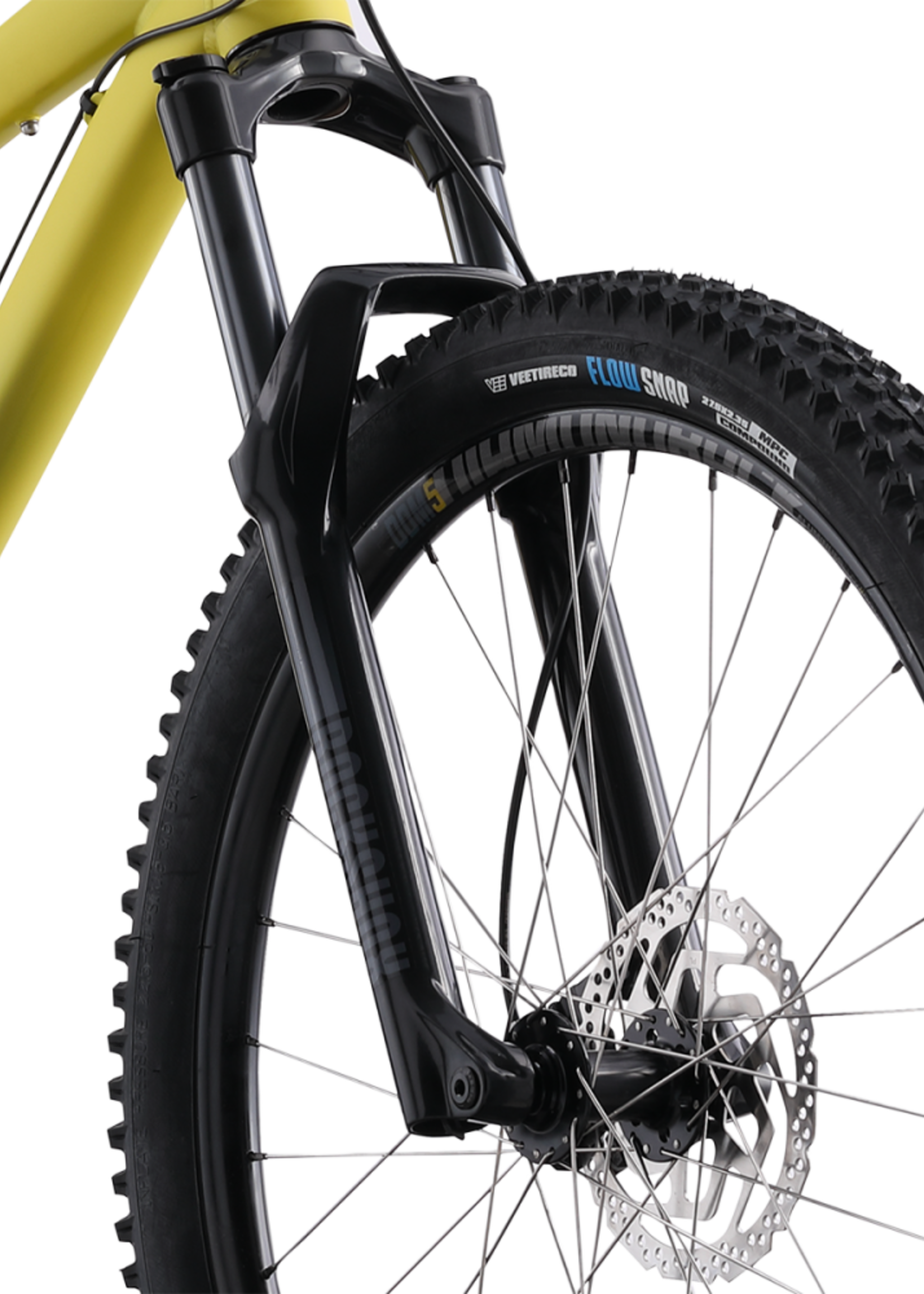

- FORKRockShox Recon RL, Solo Air, 130mm Travel, 32mm Stanchions, 15mm Thru-Axle, 1.5" Tapered Steerer Tube, w/ Rebound and Lock Out Adjust
- HEADSETFSA NO.57, Sealed Cartridge for Tapered Headtube

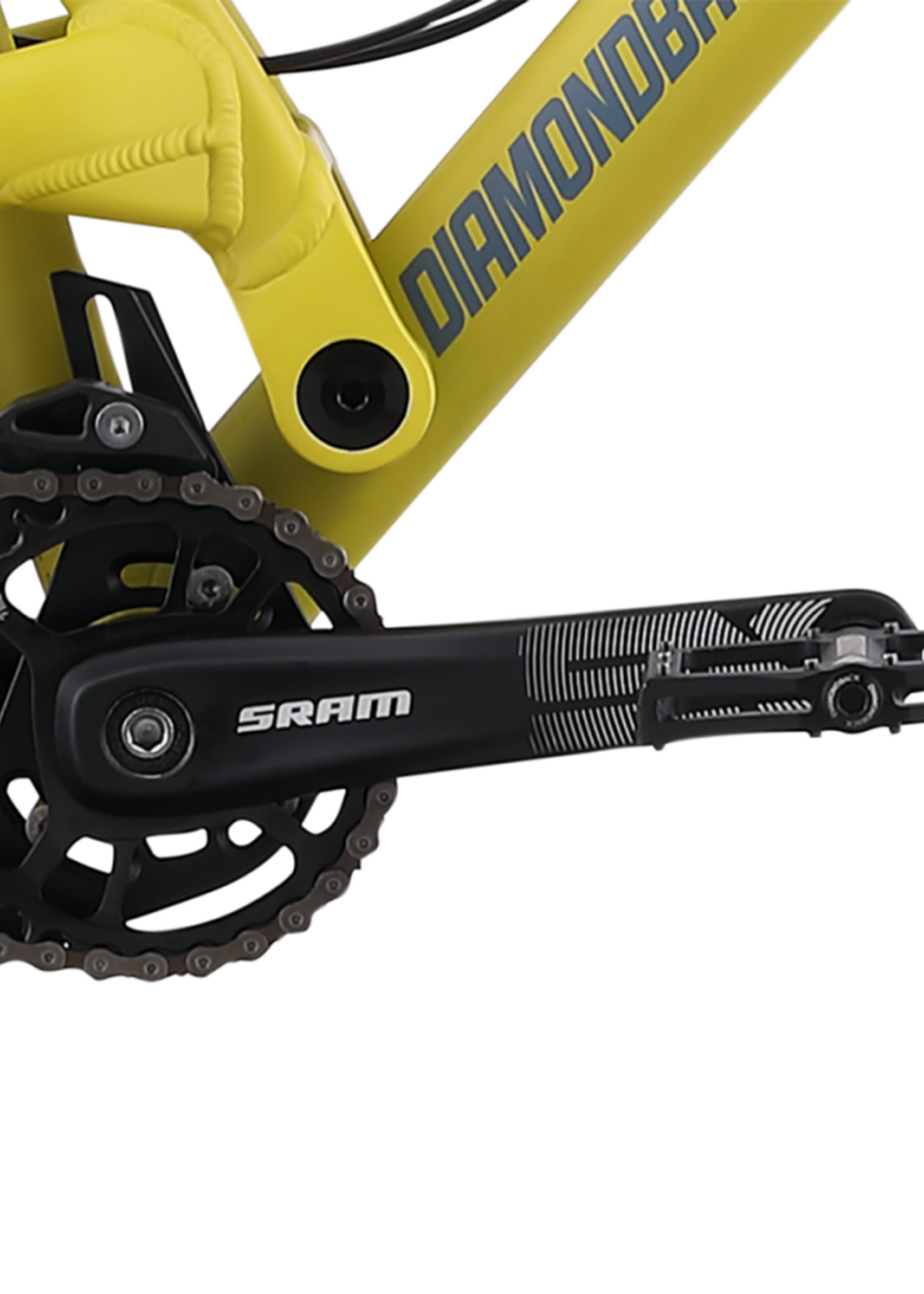

- CRANKSRace Face Æffect Cinch w/ Steel 30T "Narrow Wide"
- BOTTOM BRACKETRace Face Outboard Bearing

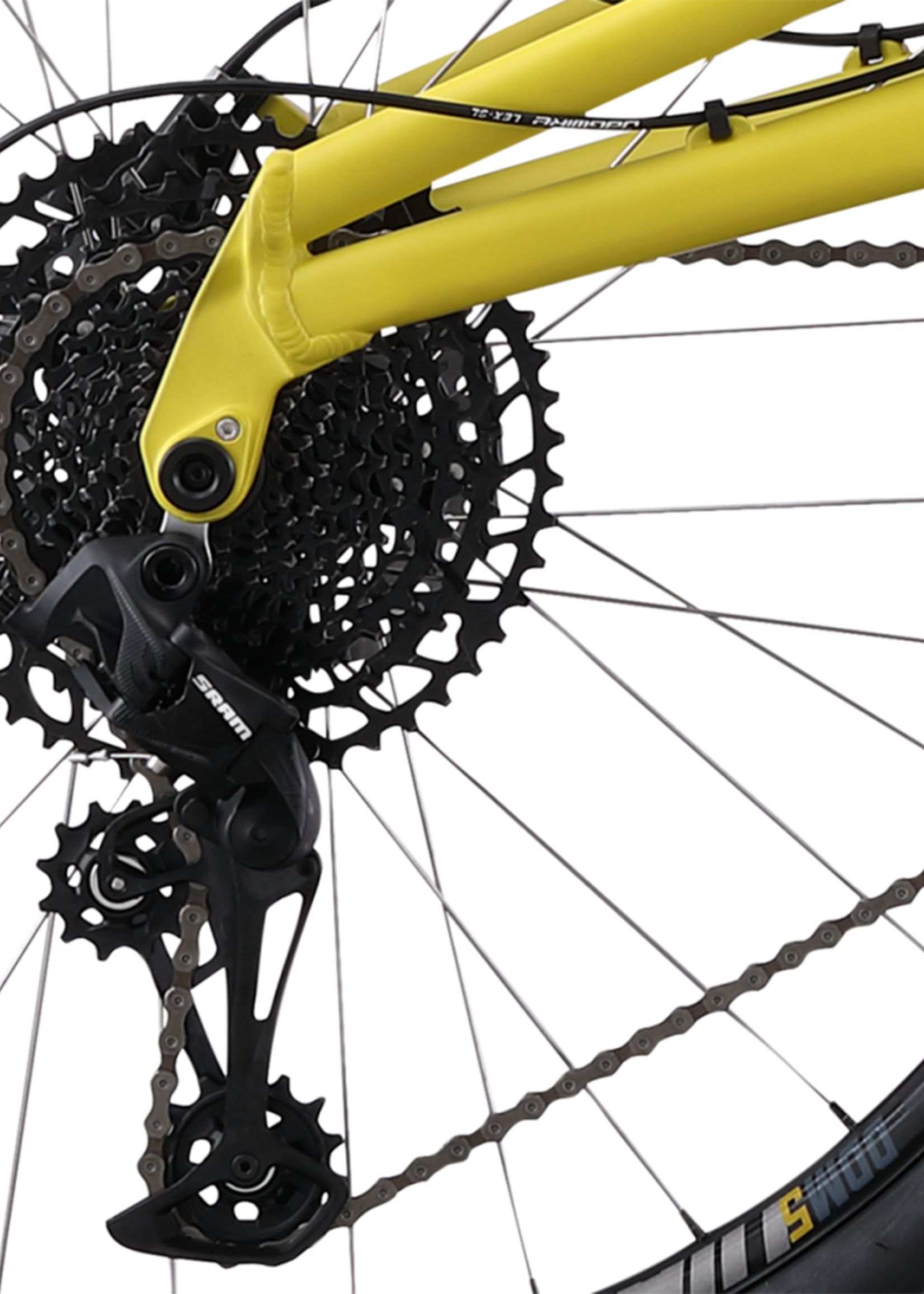

- REAR DERAILLEURSRAM SX EAGLE, 12 Speed
- SHIFTERSRAM SX 12 Speed X-Actuation Trigger
- COGSETSRAM PG1210, 12 Speed, 11-50T
- CHAINKMC X12, 12 Speed
- FRONT HUBFormula Hub, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount
- REAR HUBFormula Hub, 32h Aluminum 142x12mm Thru-axle, 4 Sealed Cartridge Bearings, Cassette, w/ CNC Disc Mount
- SPOKES14g Stainless Steel
- RIMS32H, DDM-5, 27.5 Doublewall, Not Taped
- TIRESVEE Rubber, Mission, 27.5x2.3, Non Tubeless Tire

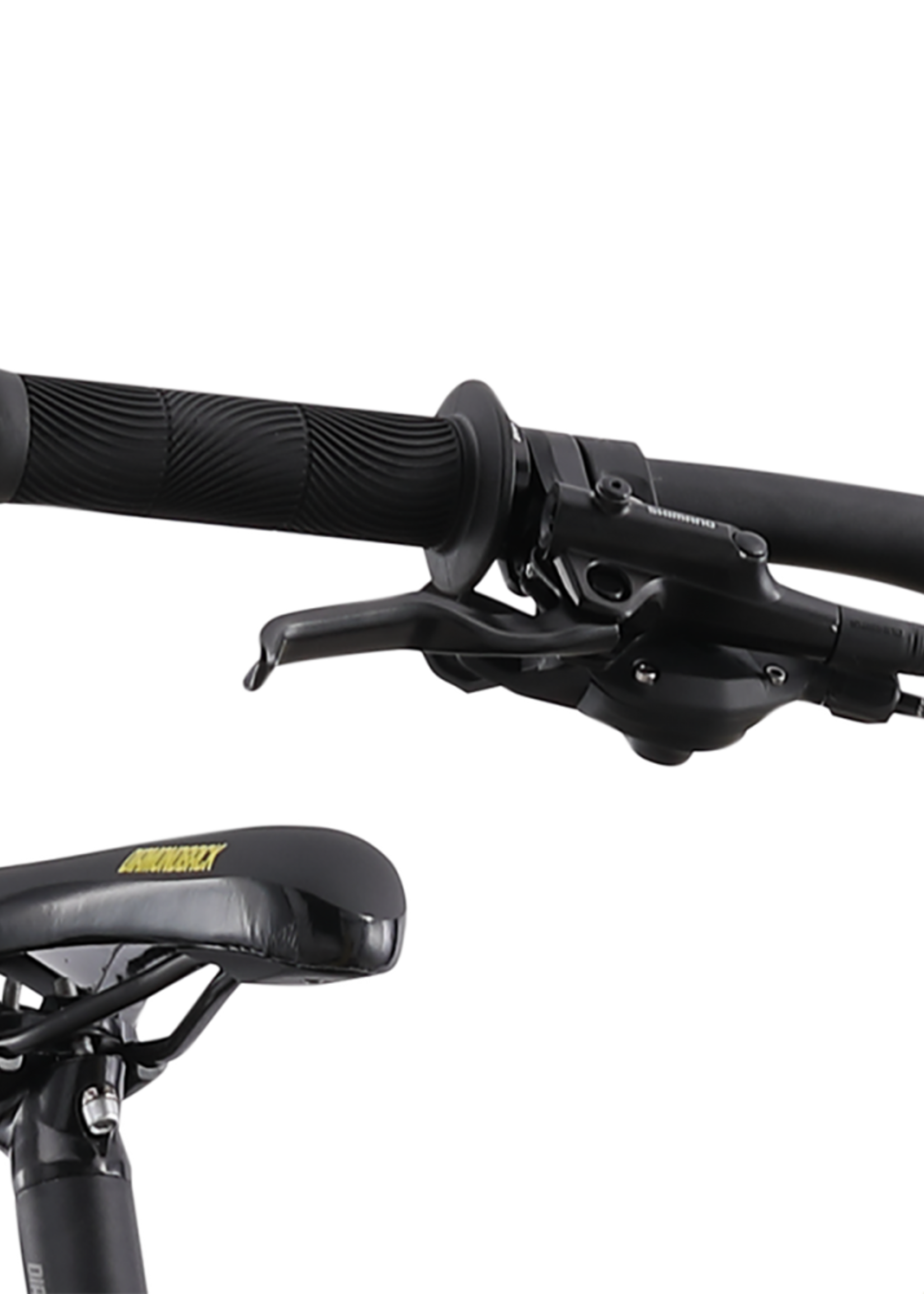

- BRAKE LEVERSShimano MT200 Hydraulic
- PEDALSDB4L Aluminum Platform
- HANDLEBARRace Face Chester, 780mm Wide, 35 Bar Bore
- GRIPSNew DB "Flanged" Lock-on, 135mm Silcone
- STEMRace Face Chester, 40mm Reach, 35 Bar Bore

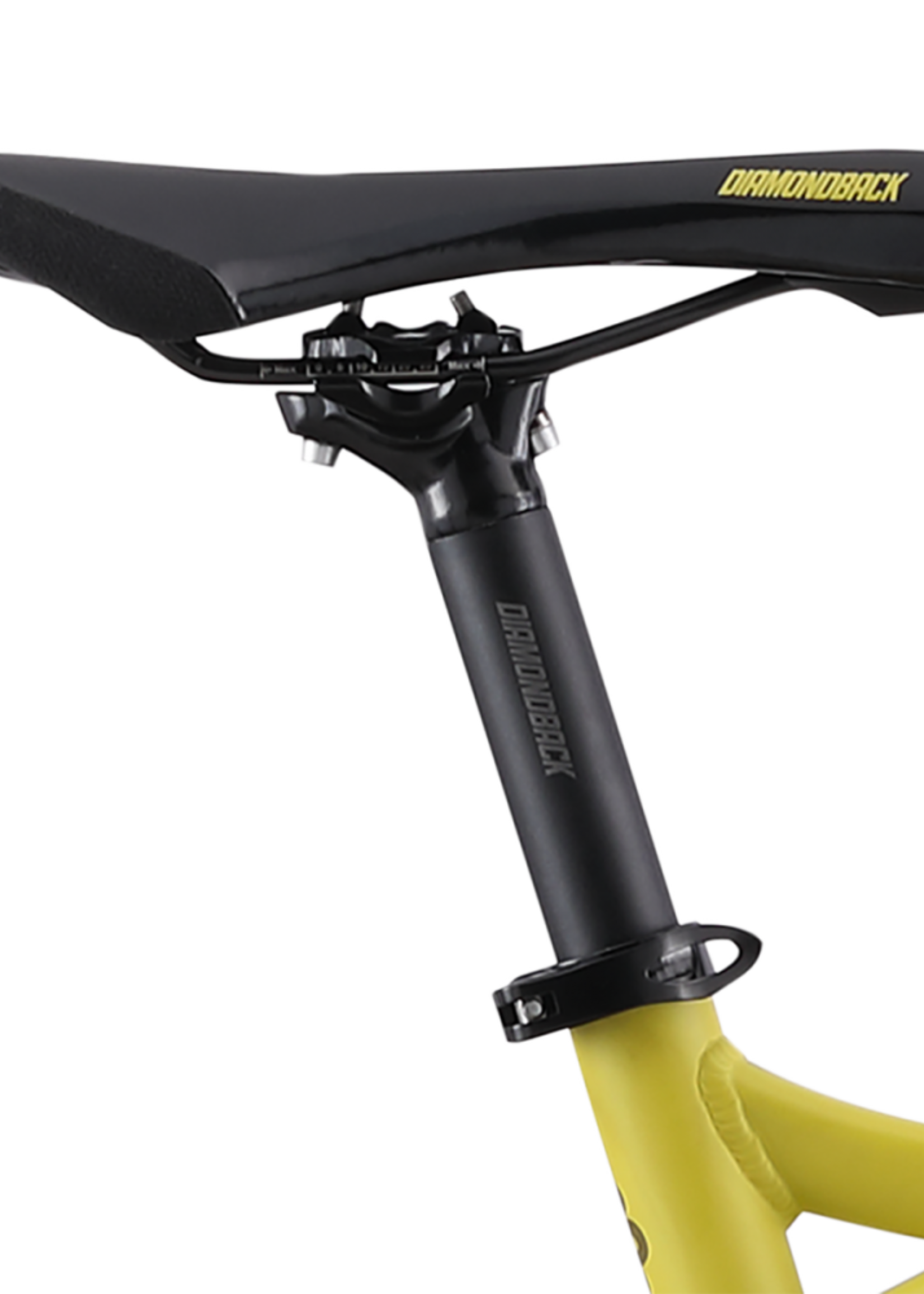

- SEATDB Sync'r Saddle
- SEATPOSTAluminum Micro Adjust, 30.9mm
- EXTRASTool Kit, Non Tubeless Compatible
- BRAKESShimano MT200 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors
