BACKLIT LCD DISPLAY

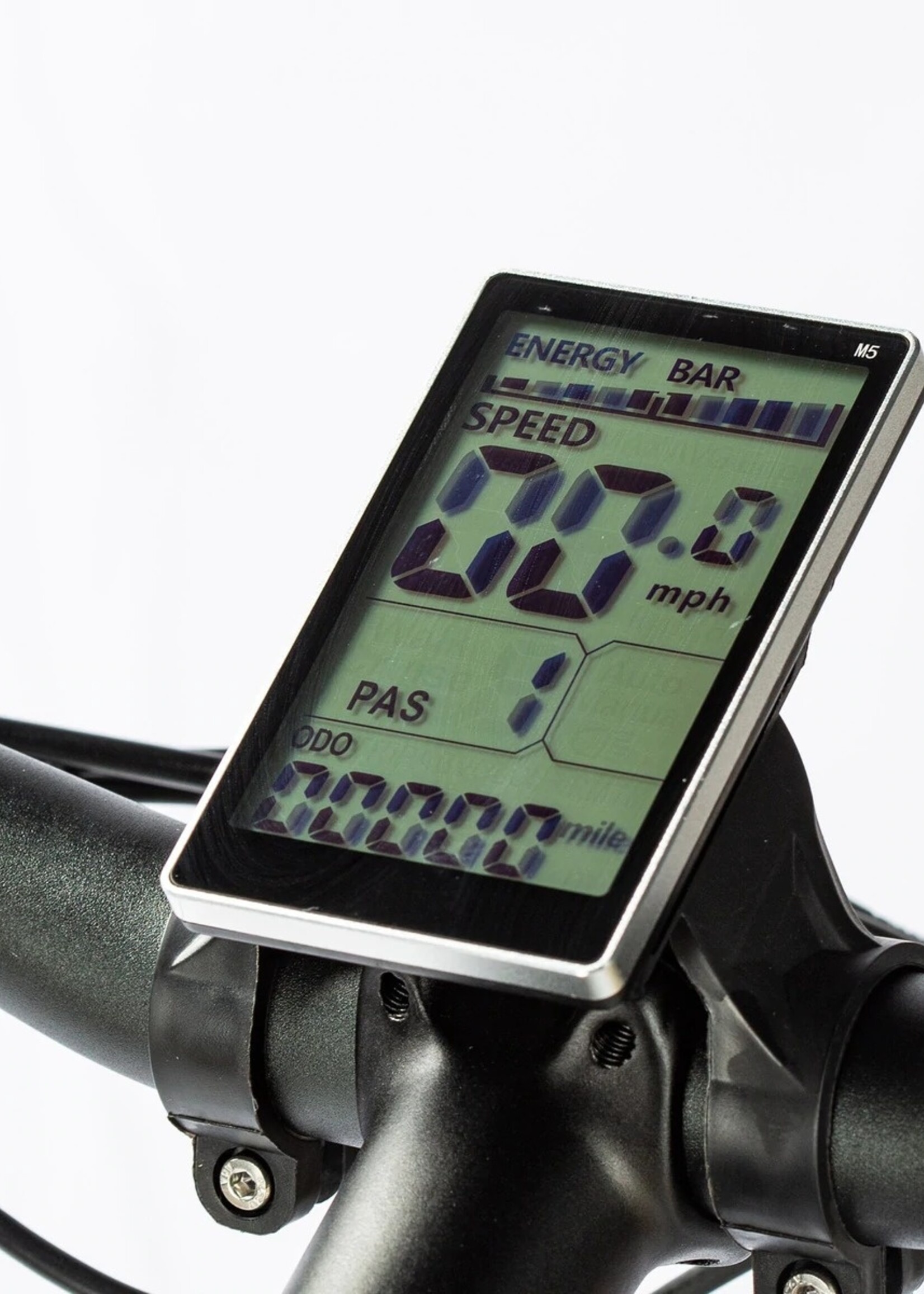

Keep an eye on your range, pedal assist level, speed, and distance traveled when they're displayed on an easy to read LCD mounted onto your handlebars.

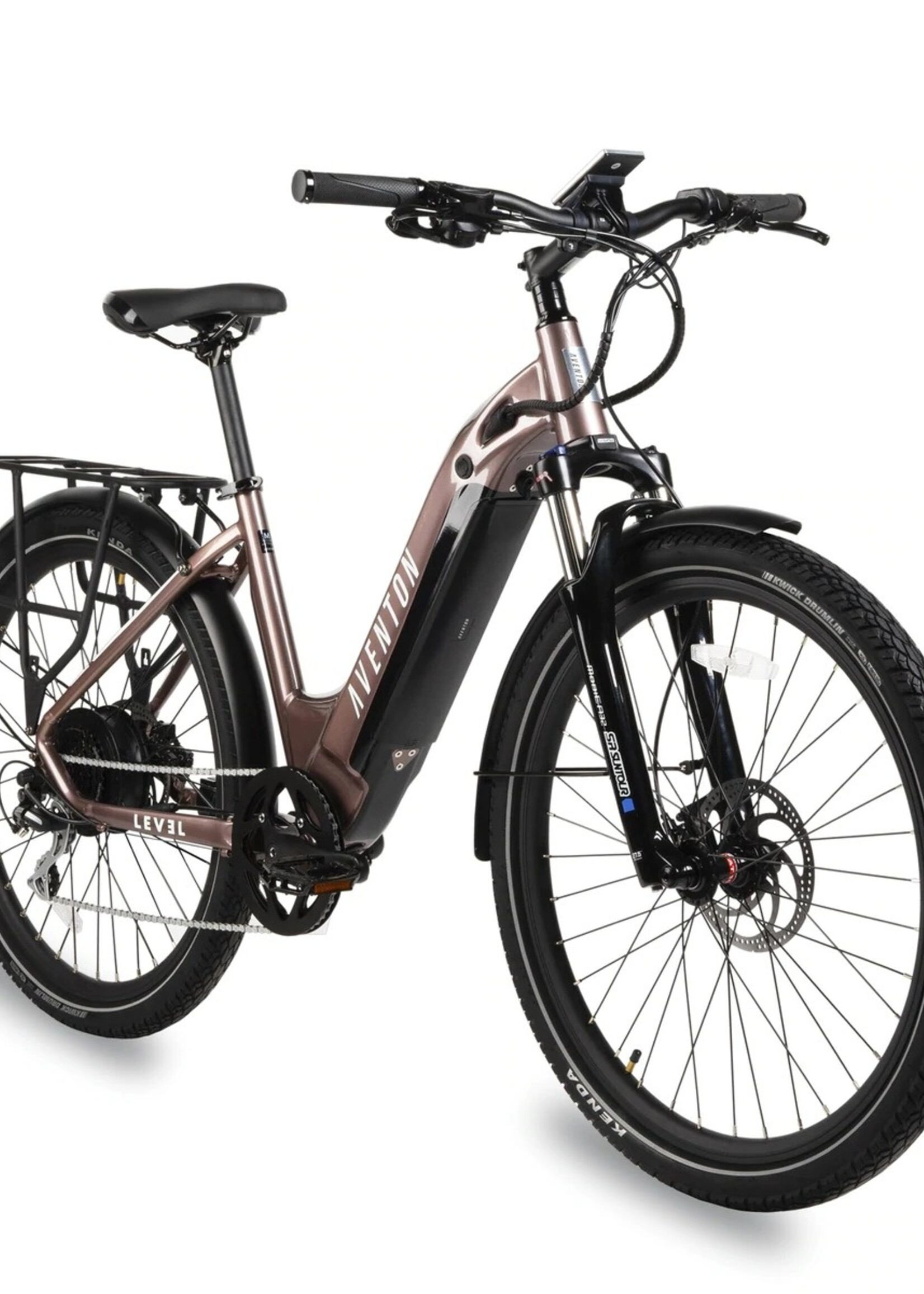

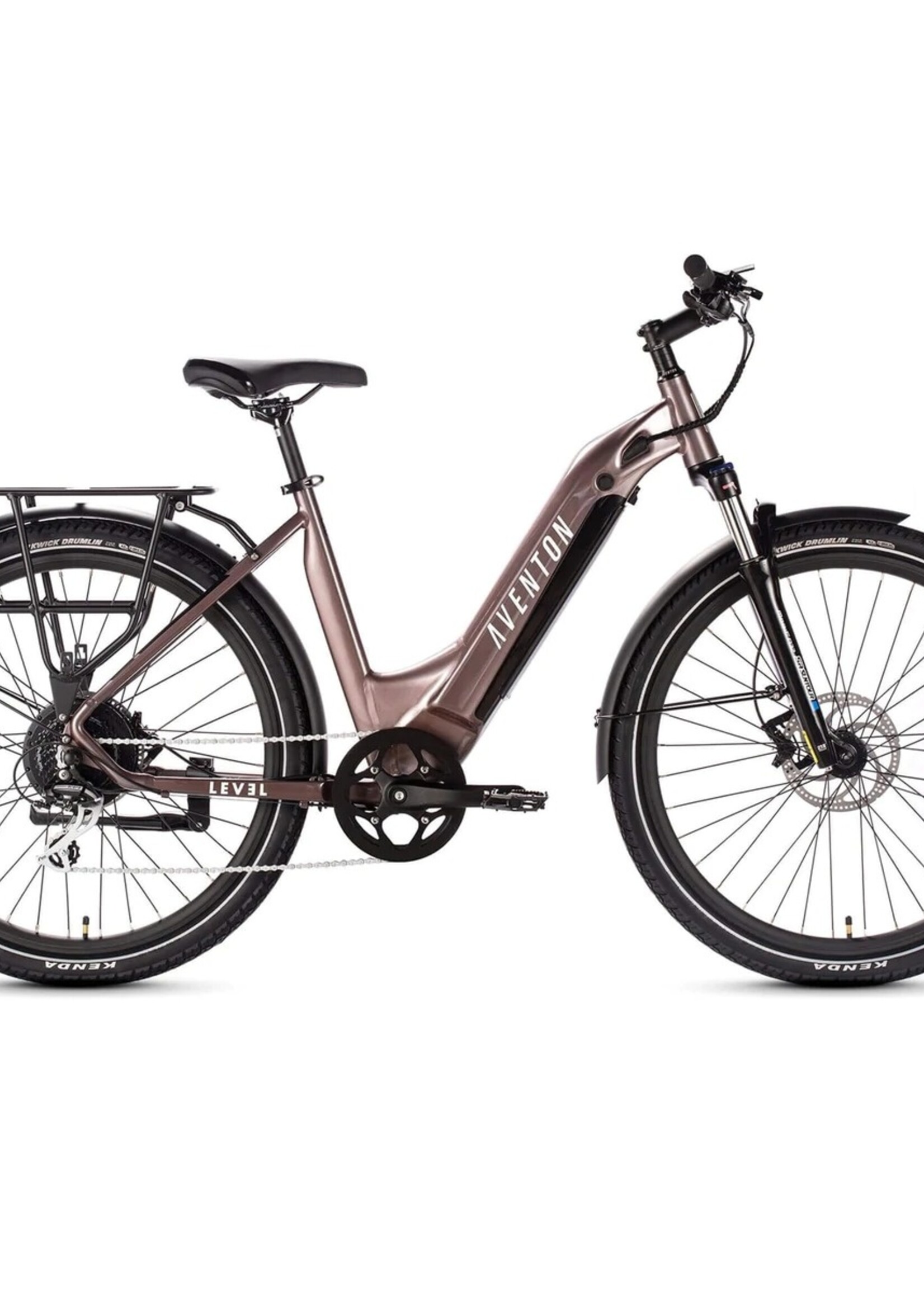

The Level Step-Through is designed for riders who rate comfort and ease-of-use as highly as they do functionality. Built-in fenders, a versatile rack, and ride tempering front suspension mean that, wherever you go, you'll be riding in comfort, carrying all you need, whilst safely protected from the elements below. With the same technology under the hood as our beloved Level Commuter e-bike, but with a lower center of gravity and a step-through for the less able-bodied amongst us, the Level Step-Through will keep up with the traffic during the week, and even the fastest of grandchildren on the weekend.
Keep an eye on your range, pedal assist level, speed, and distance traveled when they're displayed on an easy to read LCD mounted onto your handlebars.
Comfort is taken to the next level with a nimble front tire and integrated suspension fork. Both designed to absorb the roughest part of the trail or pavement beneath your wheels.
Ride anywhere and everywhere with confidence when you're protected from the elements underneath you with built in fenders. An integrated rack means you can bring along everything you may need for your day, with the power of your ebike to help you carry it.
We listened to our customers and released this step-through version of our Level ebike to help increase ebike accessibility for everyone. From the shorter amongst us to those who find it difficult to lift their legs over a standard frame, this ebike is perfect for everyone out there!
An almost silent hub motor and integrated battery mean that people will only know you're riding an ebike because of how fast you zip by them! Keep up with the traffic, or the grandkids, no matter how much you're carrying on your rack with our powerful 750W (peak) motor and extended life battery.

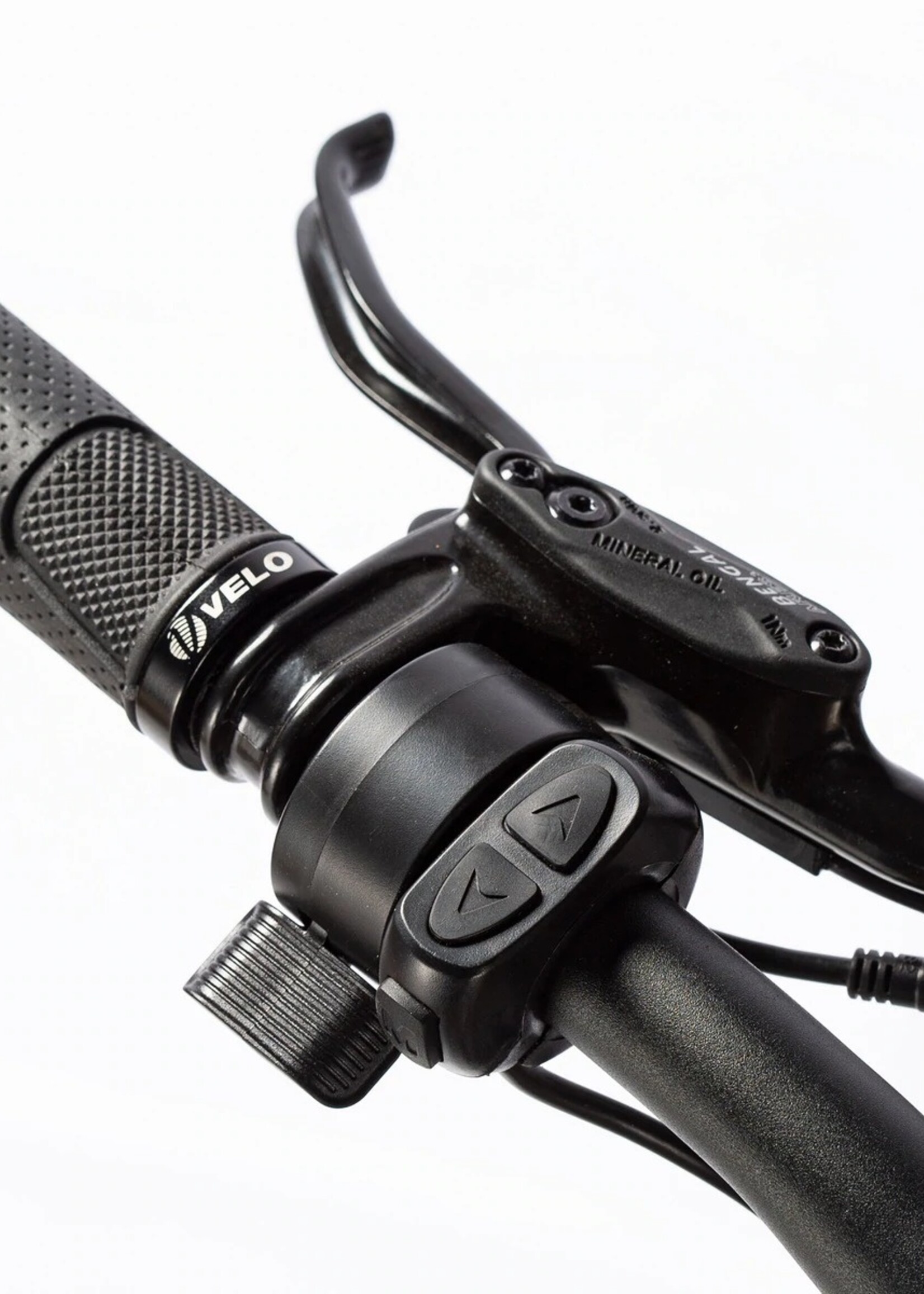

Comfortably controllable from your handlebars the throttle ensures that you can get that little extra boost when you really need it, whilst pedal assist allows you to make your ride as energy consuming as your choose for you or your battery.
MOTOR 750W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor | THROTTLE Throttle on demand - Throttle from a complete stop | DISPLAY M5 LCD Smart Easy Read Display with Backlight |
SPEED Up to 28 MPH on Pedal Assist and 20 MPH on Throttle | BATTERY Removable Internal Lithium-ion 48V, 14Ah (672Wh) | SENSORS Cadence Sensor, Speed Sensor |
PEDAL ASSIST 5 Levels | CHARGER Included is a 48V 3 Amp Fast Charger, 4-5 Hour Charging | RANGE 40 Miles Average |
FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery | WEIGHT 62lbs | PEDALS 9/16" Alloy Platform |
FORK Coil spring suspension, thru-axle, 75mm travel, with lockout | WEIGHT LIMIT Maximum Payload Capacity: 300 lbs | KICKSTAND Included, Rear Mount |

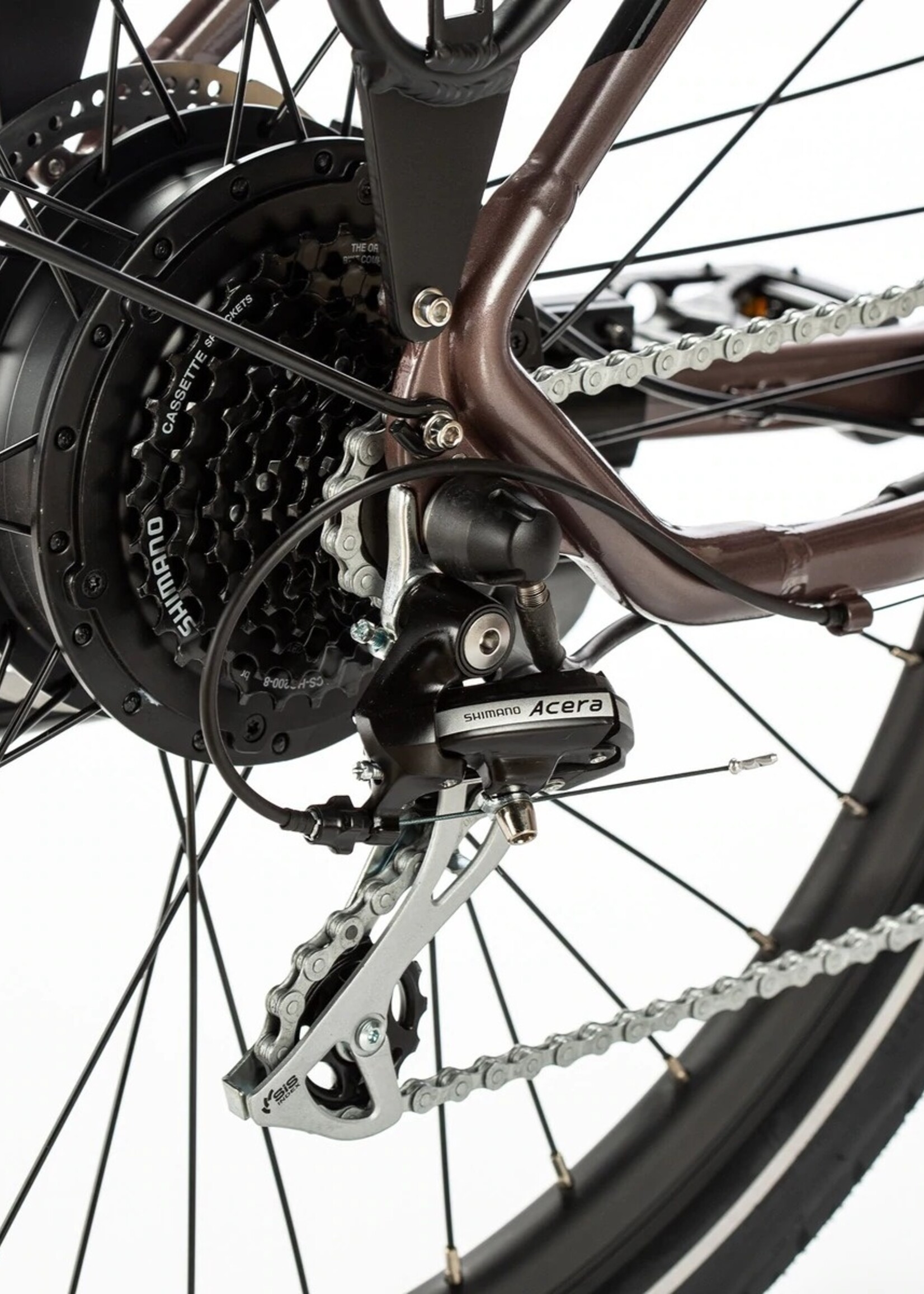

BOTTOM BRACKET Square Taper, Sealed | CRANKSET 170mm w/ 46 T | REAR DERAILLEUR 8 Speed |
CASSETTE 12-32T, 8 Speed Cassette | SHIFT LEVER 8 Speed | BRAKES Hydraulic Disc Brakes, 180mm Rotors |
CHAIN 8 Speed | RIM Double Wall Aluminum 36h Front & Rear | SPOKES Black Stainless 12 Gauge |
TUBES Butyl Rubber, Schrader Valve | HUBS 36H Disc Thru-axle Front, Nutted Rear | TIRES 27.5" Ebike Rated, Reflective Sidewalls |
SADDLE Aventon by Velo | SEATPOST Forged Alloy, 27.2mm, 2-Bolt Clamp | STEM Threadless, 31.8mm, 7 Degree Rise |
SEAT CLAMP Quick Release | HANDLEBARS Aluminum 31.8mm, 680mm | HEADSET VP Sealed Bearing Headset |
GRIPS Ergonomic Comfort |
Level ships as a Class III ebike. If you are riding on private property or in an area without ebike speed restrictions, the speed limit can be modified in the settings. Level will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are not allowed.
Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
How to Build & Manuals
The assembly of the Level Step-through is identical to the Level Step-over shown in this video.
*Aventon has the right without notice to the consumer to substitute components of at least equal quality for advertised Aventon ebike components in the event of the unavailability of such advertised components. More info
