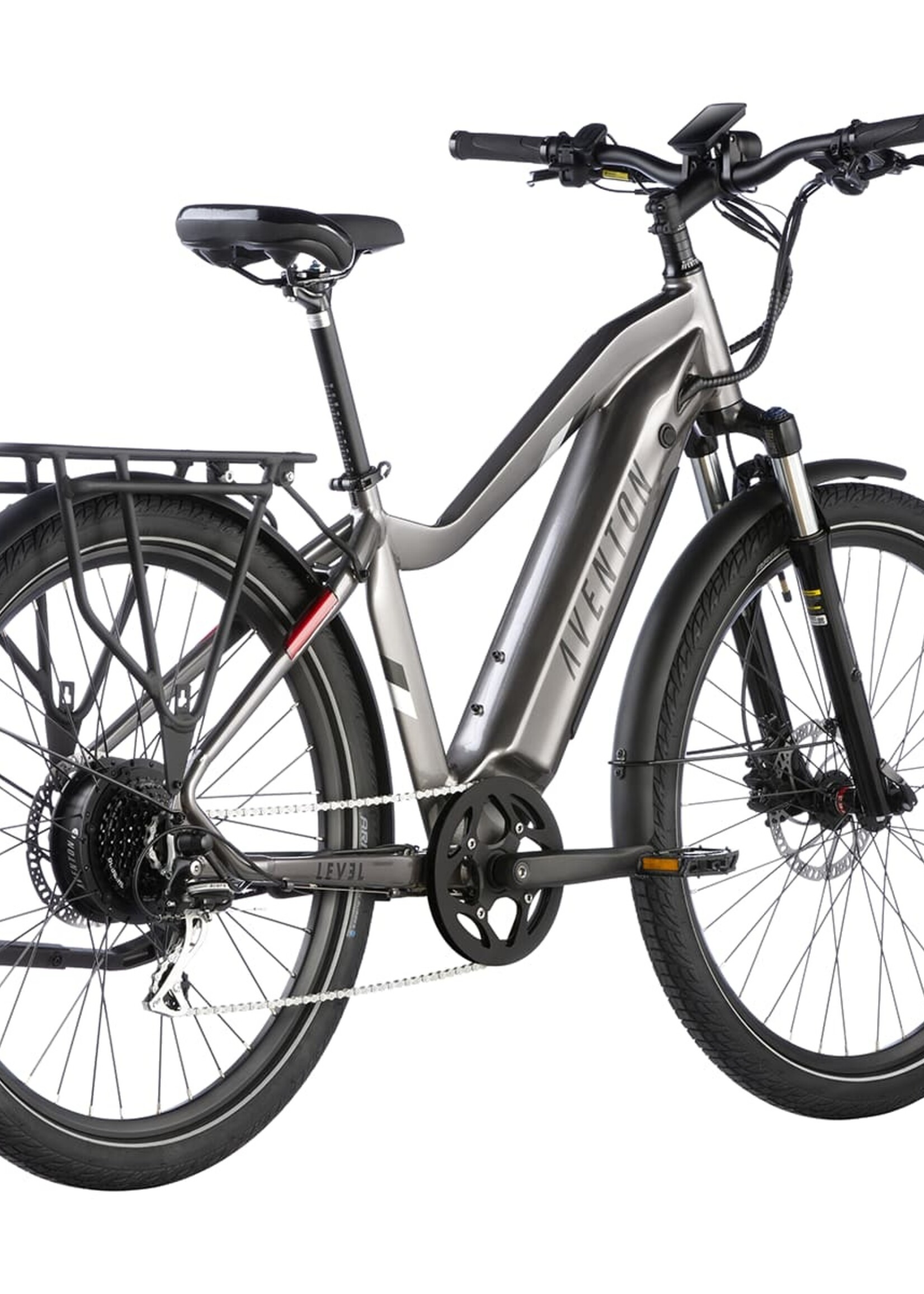

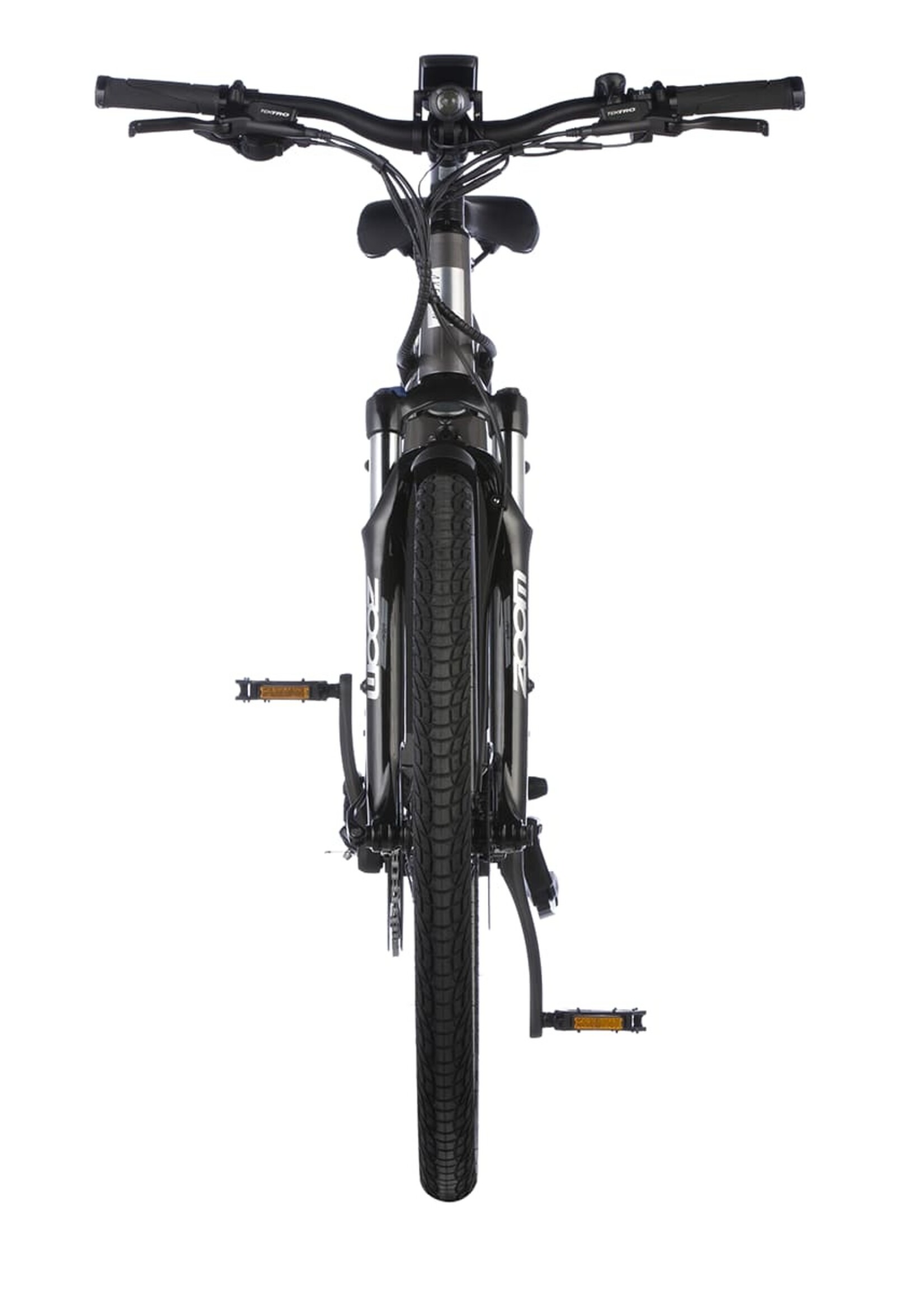

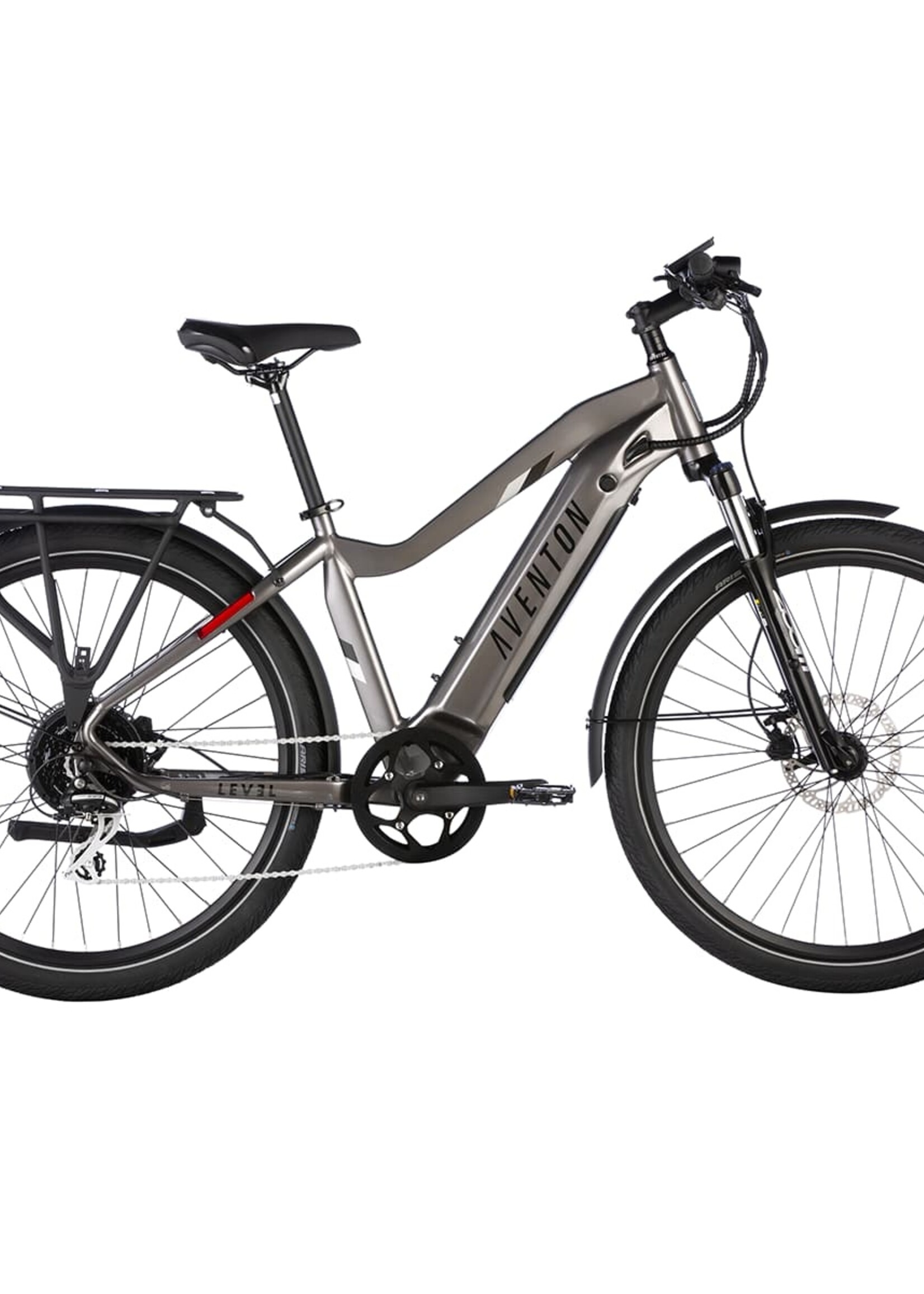

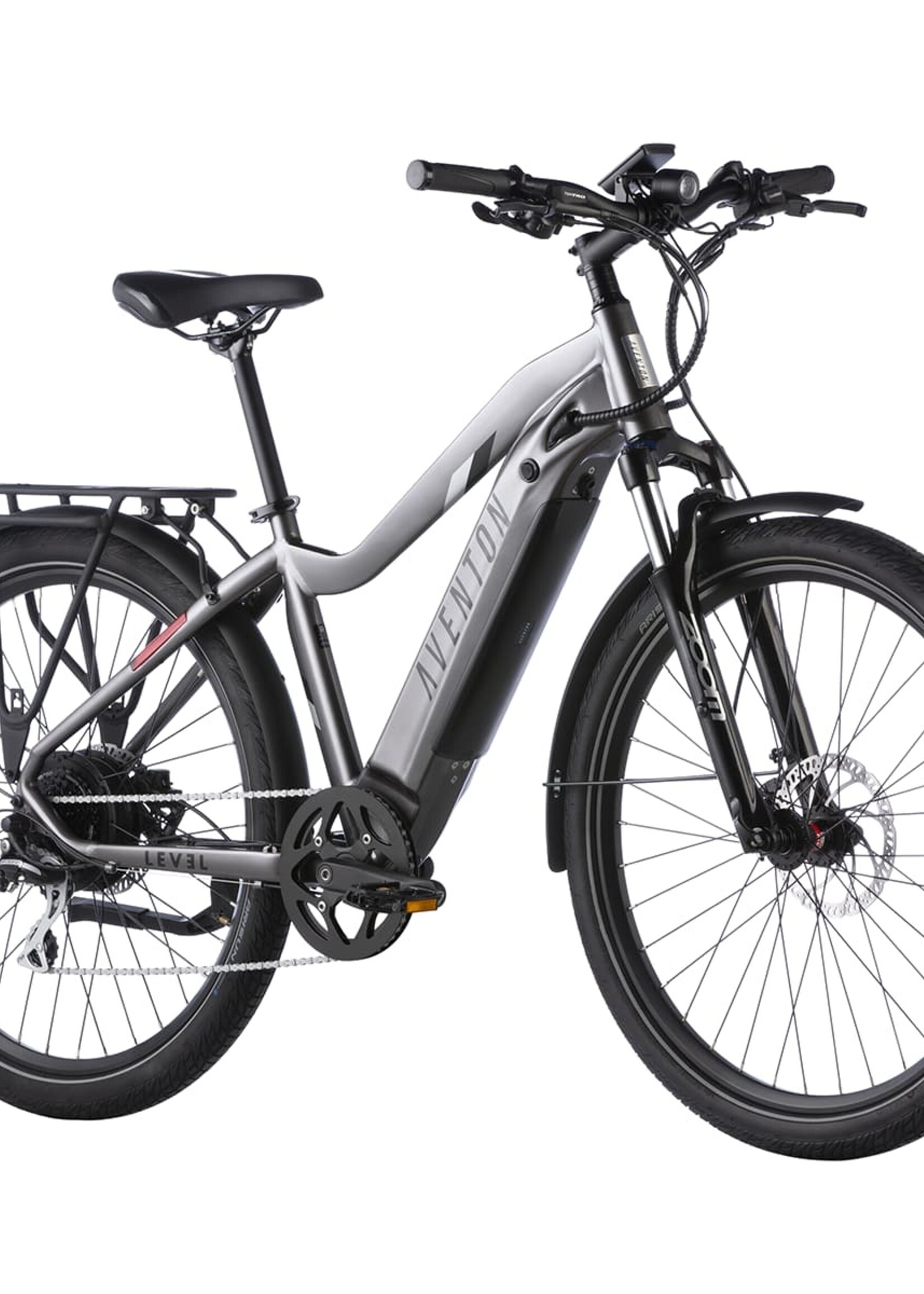

AventonLevel.2 Commuter Ebike Regular / Clay
The level comes in 2 sizes to suit most adults.
Regular 5'7" - 5'11"
Large 5'11" - 6'4"
Frame Size | Regular | Large |
---|---|---|
Height | 5'7" - 5'11" | 5'11" - 6'4" |
Top Tube Length | 579mm | 603mm |
Reach | 364mm | 385mm |
Head Tube Length | 150mm | 160mm |
Standover Height | 662mm | 695mm |
Wheelbase | 1097mm | 1122mm |
Min Saddle Height | 835mm | 907mm |
Max Saddle Height | 1015mm | 1080mm |
MOTOR 750W (Peak) 500W (Sustained) Brushless Rear Hub Motor | THROTTLE Throttle on demand - Throttle from a complete stop | DISPLAY LCD Smart Easy Read Display with Backlight, Colorful screen with app |
SPEED Up to 28 MPH on Pedal Assist and 20 MPH on Throttle | BATTERY Removable Internal Lithium-ion 48V, 14Ah (672Wh) | SENSORS Torque Sensor |
PEDAL ASSIST 5 Levels | CHARGER 48V 3 Amp Fast Charger, 4-5 Hour Charging | RANGE Up To 60 Miles* |
FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery | WEIGHT 54lbs | PEDALS 9/16" Alloy Platform |
FORK Coil Spring Suspension, Thru-axle, 65mm travel with lockout | WEIGHT LIMIT Maximum Payload Capacity: 300 lbs | KICKSTAND Included, Rear Mount |
BOTTOM BRACKET Square Taper, Sealed, Torque Sensor | CRANKSET 170mm w/ 46 T | REAR DERAILLEUR 8 Speed |
CASSETTE 12-32T, 8 Speed Cassette | SHIFT LEVER 8 Speed | BRAKES Hydraulic Disc Brakes, 180mm Rotors |
CHAIN 122 Link, 8 Speed | RIM Double Wall Aluminum 36h Front & Rear | SPOKES Black Stainless 13G Front / 12G Rear |
TUBES Butyl Rubber, Schrader Valve | HUBS 36H Disc Thru-axle Front, Nutted Rear | TIRES 27.5” x 2.1” Hybrid Tires, Reflective Sidewalls |
SADDLE Aventon by Velok | SEATPOST Aluminum Alloy, 27.2mm, 2-Bolt Clamp | STEM Threadless, 31.8mm, 7 Degree Rise |
SEAT CLAMP 31.8 mm Quick Release | HANDLEBARS Aluminum 31.8mm, 680mm | HEADSET Sealed Bearing Headset |
GRIPS Ergonomic Comfort |
The Level.2 comes out of the box as a Class II bike, with pedal assist and throttle going up to 20 MPH. It can be unlocked to a Class III bike and can go up to 28 MPH on the pedal assist. Level.2 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited.
Aventon bikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your bike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your e-bike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your bike.
*Using PAS 1 throughout flat terrain with a rider weight of 160 lb.
