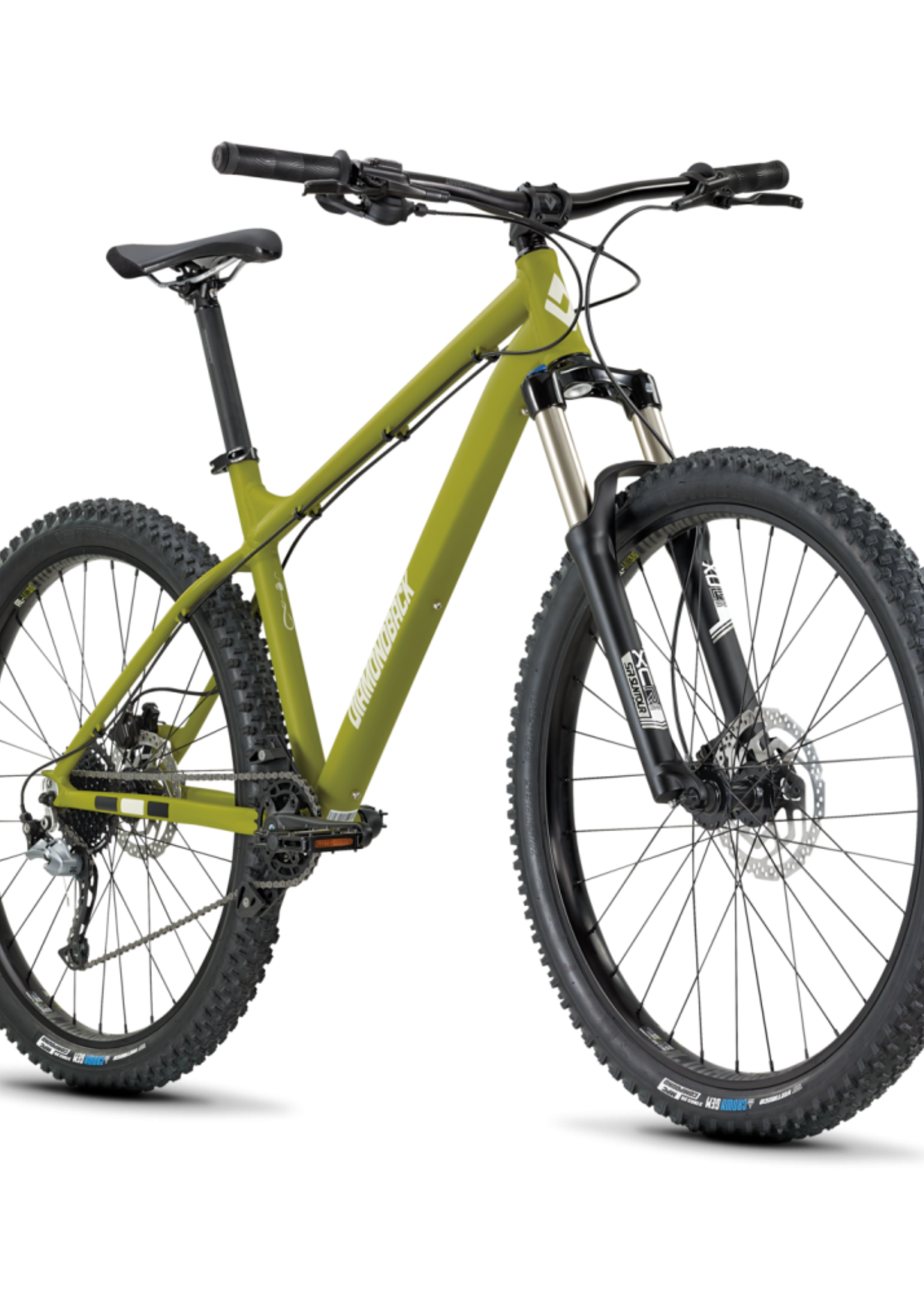

There was a time when every mountain bike was an all-around hardtail. The Line follows in that great tradition — but that doesn’t mean it’s some kind of crusty throwback. We’ve equipped the Line with a cutting-edge frame that’s lightweight yet bomber. Stable under pressure, yet playful when you’re looking to boost a little air or hit that next corner a bit faster than is, strictly speaking, wise.
The Line’s modern frame is dressed out in parts that are just as impressive. A Shimano 1×9 drivetrain lets you blaze through the gears with pinpoint precision every single time. Because we know hard-charging riders gravitate to these progressive trail bikes, we’ve also added a bit more security in the form of a chain guide with roller, a capable SR Suntour XCR 120mm travel fork (with a lock-out for those big climbing days) and powerful Shimano hydraulic disc brakes.
Climbs, descents, berms, a bit of jumping: the Line upholds the do-it-all hardtail tradition … without being traditional at all.

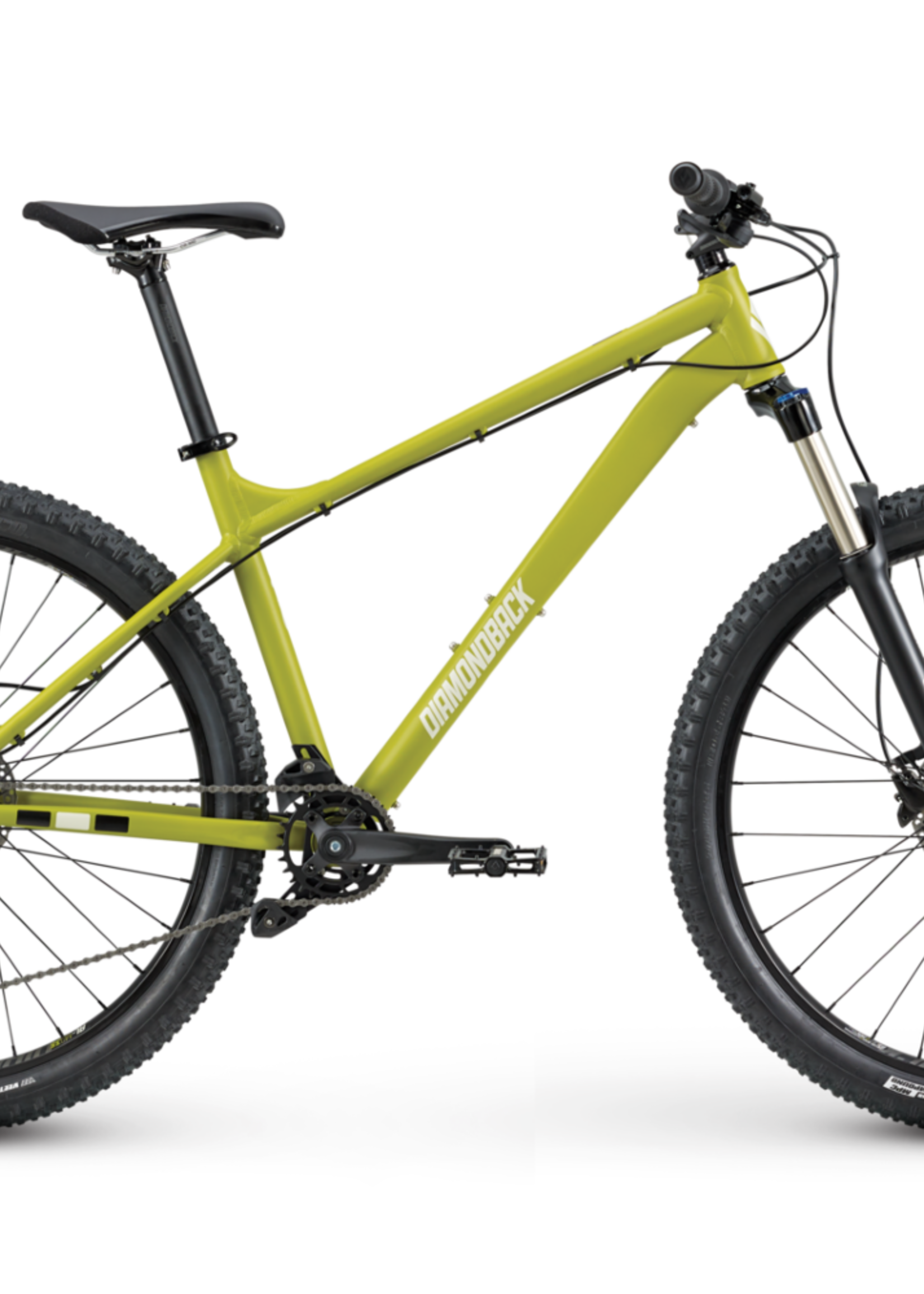

- FRAME6061-T6 Butted Alloy for 27.5", 1 1/8" Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, Internal Dropper Ready

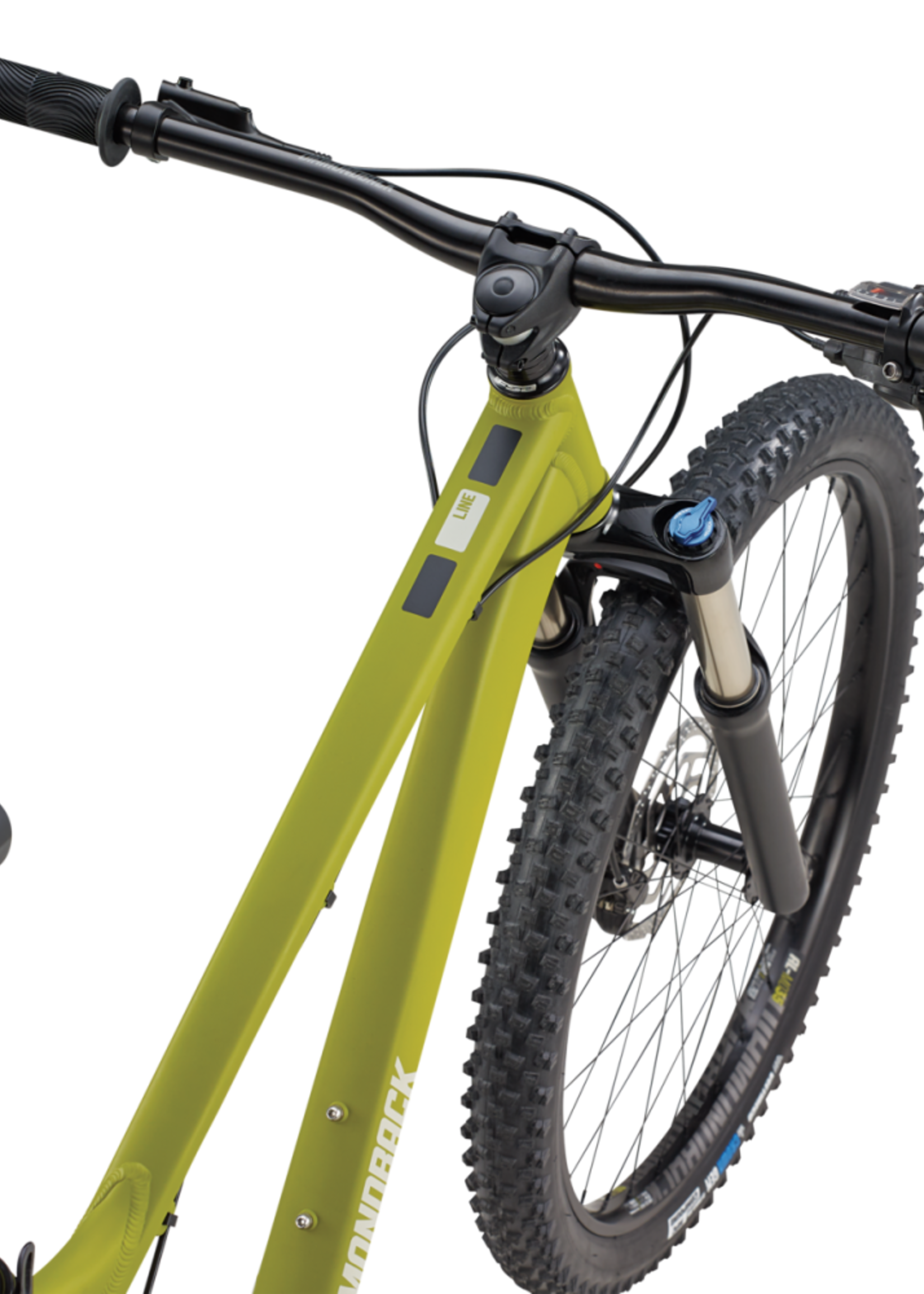

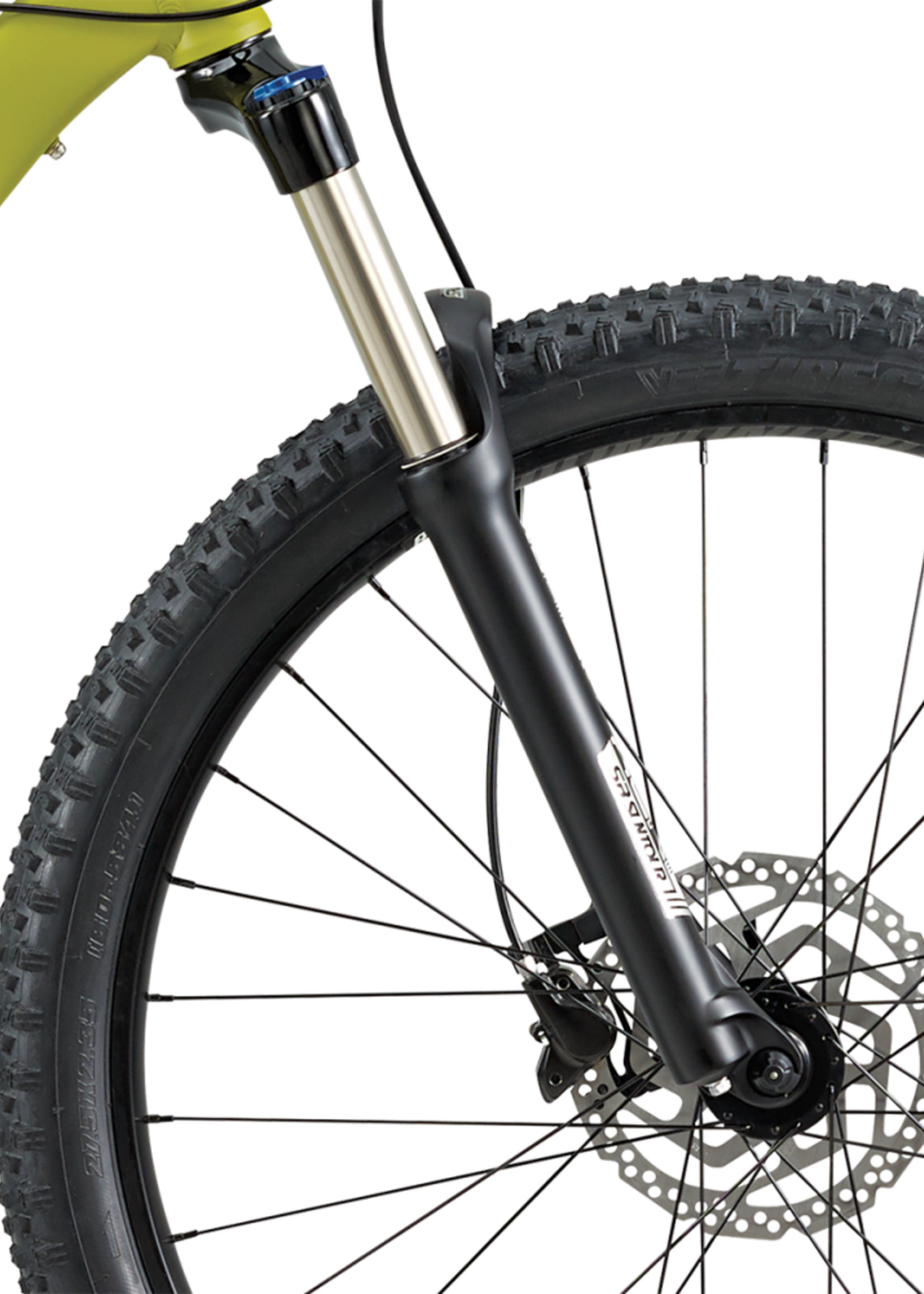

- FORKSR Suntour XCR or X-1, 120mm Travel, 32mm Stanchions, w/ Preload Adjust and Hydraulic Lock Out
- HEADSETFSA IS-3/NO.11 Integrated Style

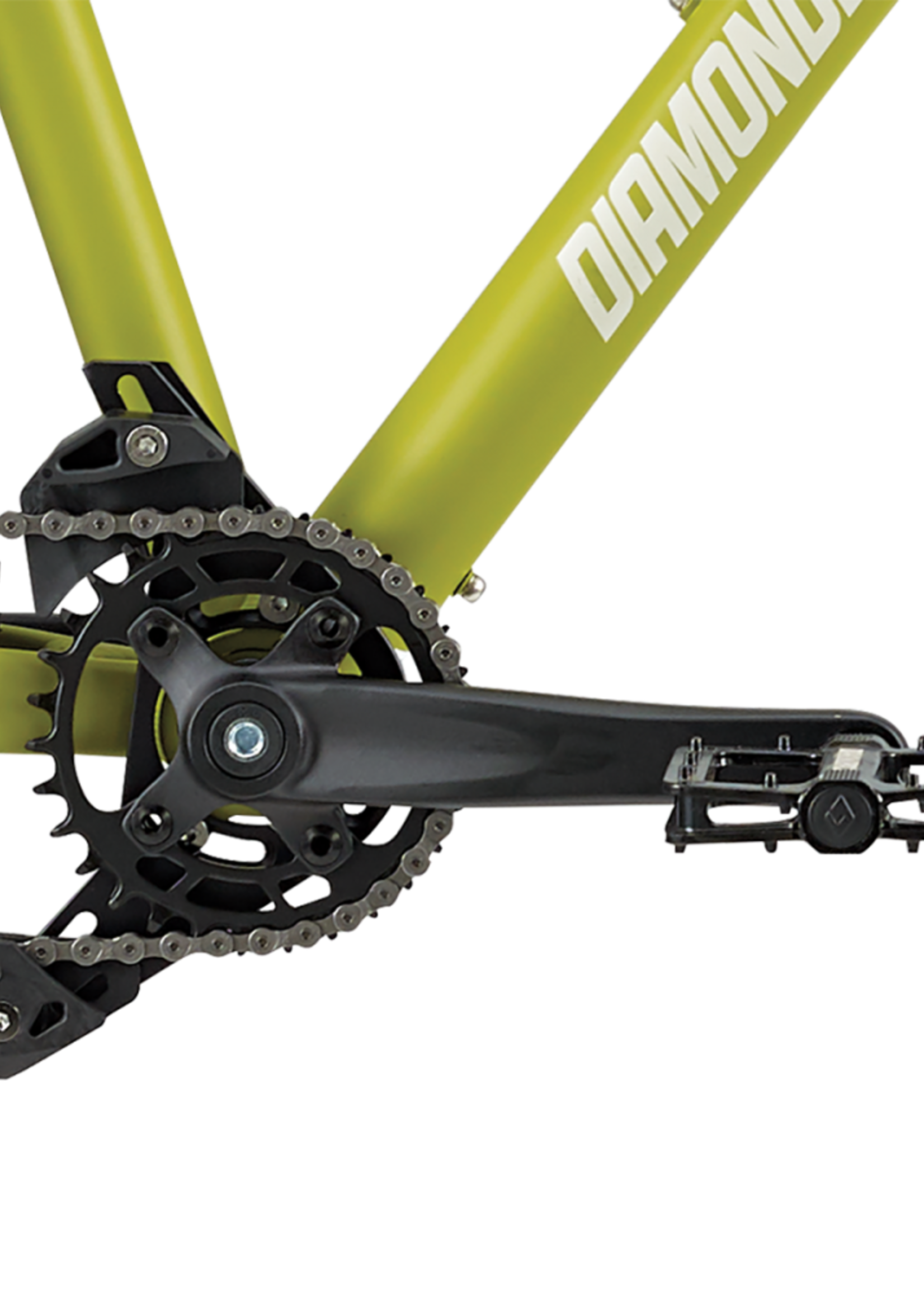

- CRANKSAlloy Arm w/ 30T Steel "Narrow Wide" Single Ring
- BOTTOM BRACKETSealed Cartridge
- FRONT DERAILLEURFull ISCG-05 Chain Guide w/ Roller

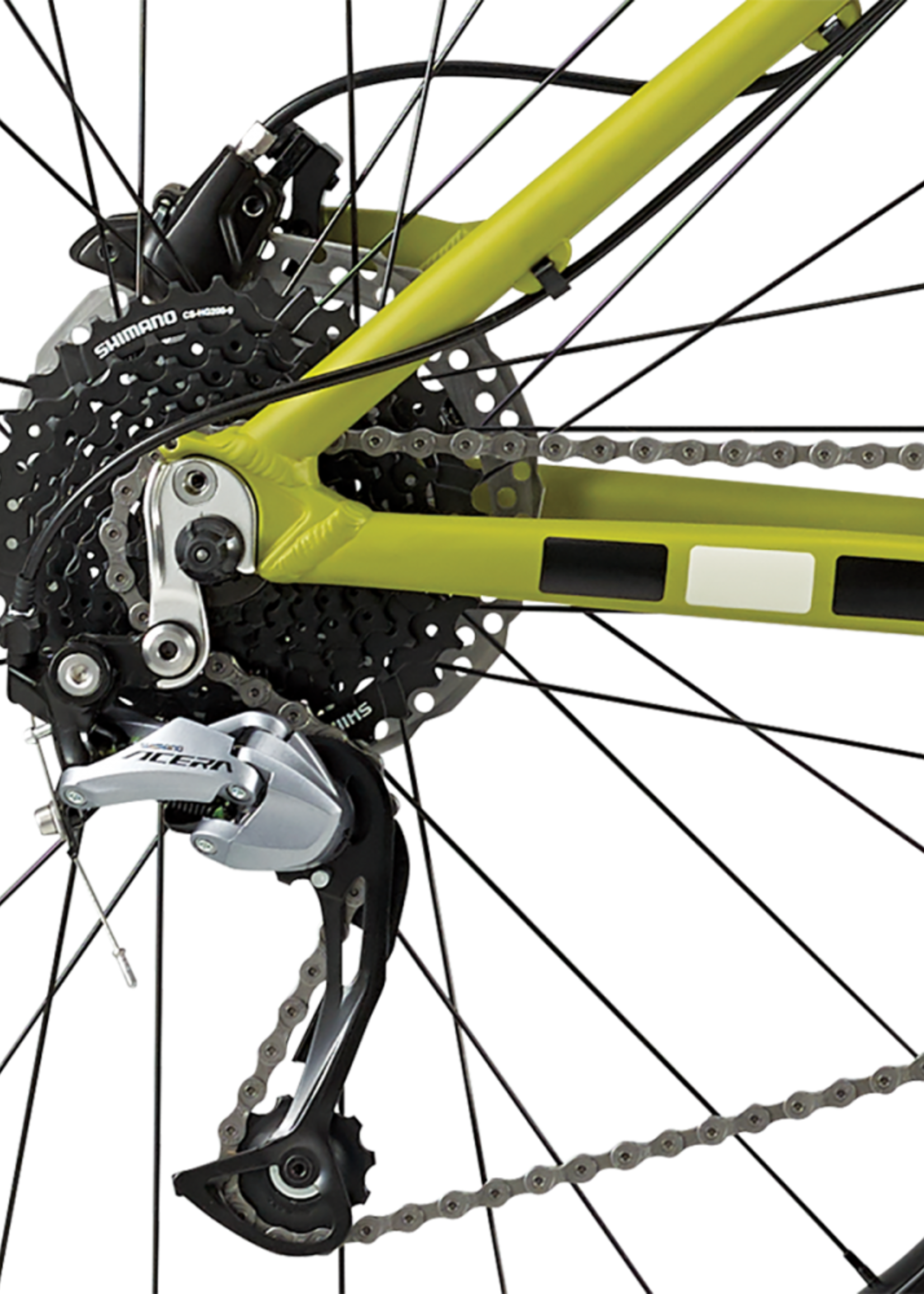

- REAR DERAILLEURShimano Acera M3000 Shadow, 9 Speed
- SHIFTERShimano Acera M3000, 9 Speed
- COGSETShimano HG200, 9 Speed, 11-36T
- CHAINKMC Z9, 9 Speed
- FRONT HUB32h Alloy w/ CNC Disc Mount, 100mm
- REAR HUB32h Alloy w/ CNC Disc Mount, Cassette; 135mm
- SPOKES14g Stainless Steel
- RIMS32h Diamondback MD35 Doublewall
- TIRESVee Rubber Crown Gem 27.5x2.35
- BRAKE LEVERSShimano Hydraulic
- PEDALSDB4L Alloy Platform
- HANDLEBARDiamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore
- GRIPSDB "Flanged" 135mm Silcone
- STEMDiamondback "Shortie", 45mm Reach, 31.8 Bar Bore

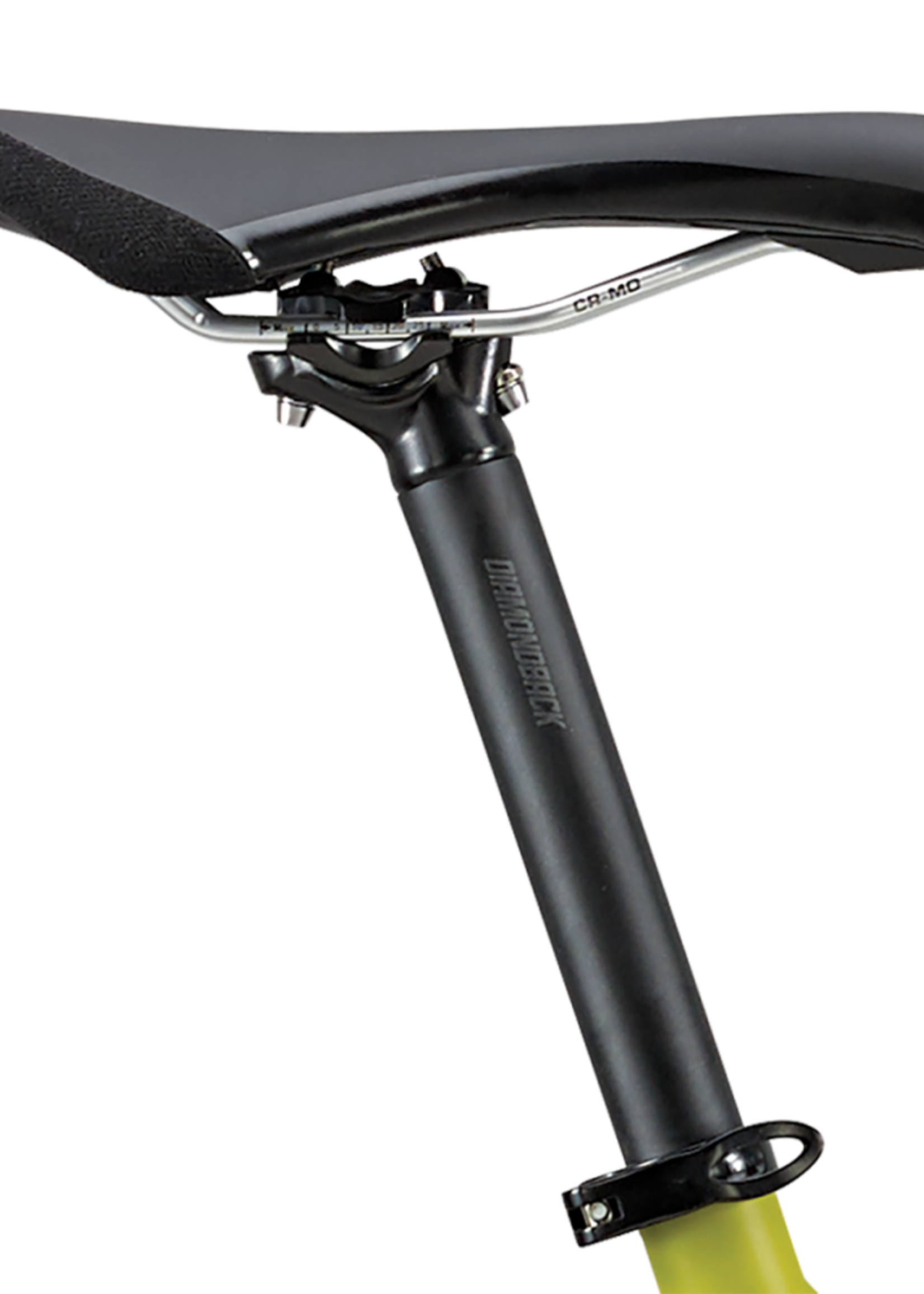

- SEATDB Sync'r Saddle
- SEATPOSTAlloy Micro Adjust, 30.9mm
- EXTRASTool kit
- WEIGHT31.5 Lbs.
- BRAKESShimano MT-200 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors
